WOLF 9500 DT Mobile Primary Shredder

High-Power Mobile Shredding for Demanding Materials

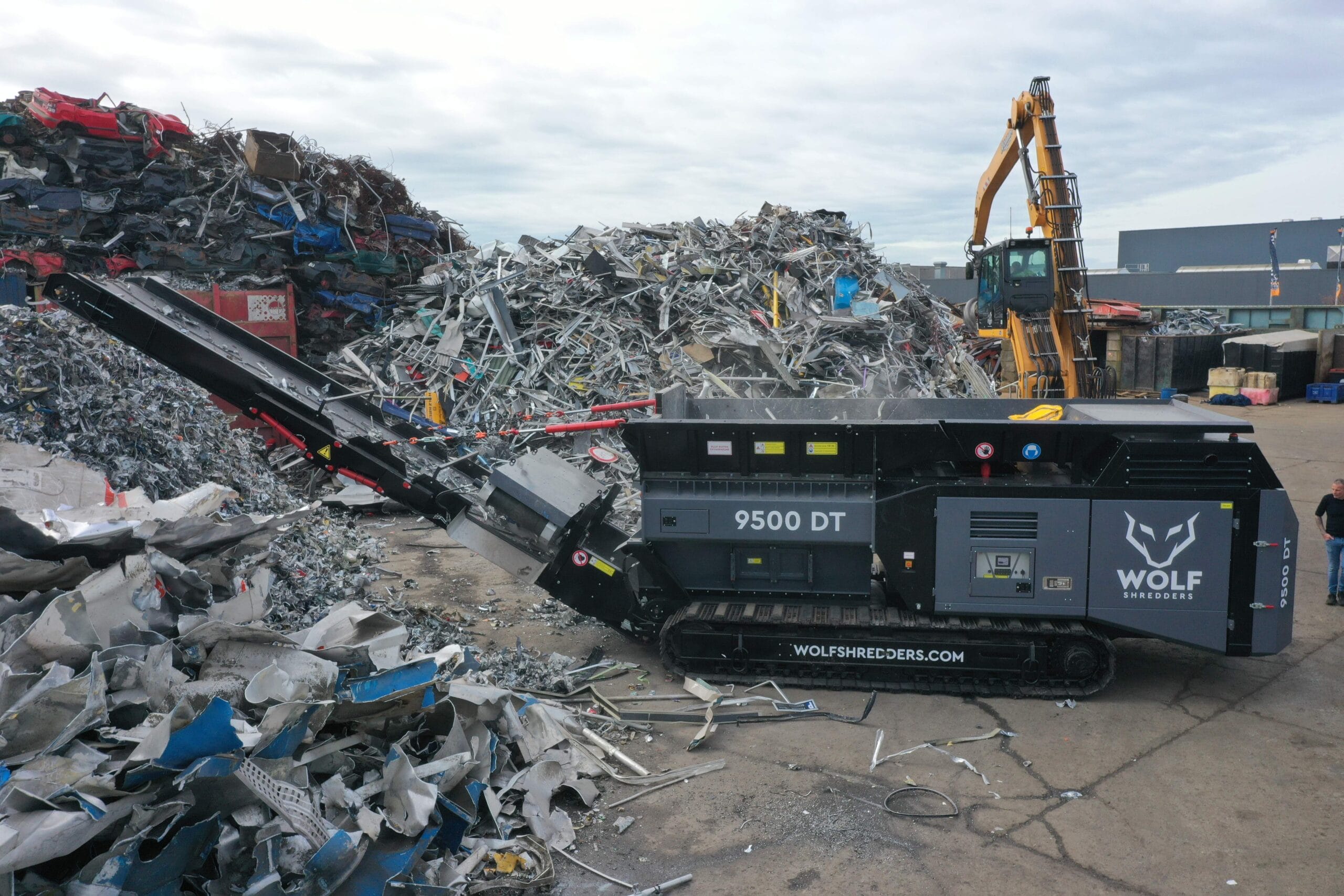

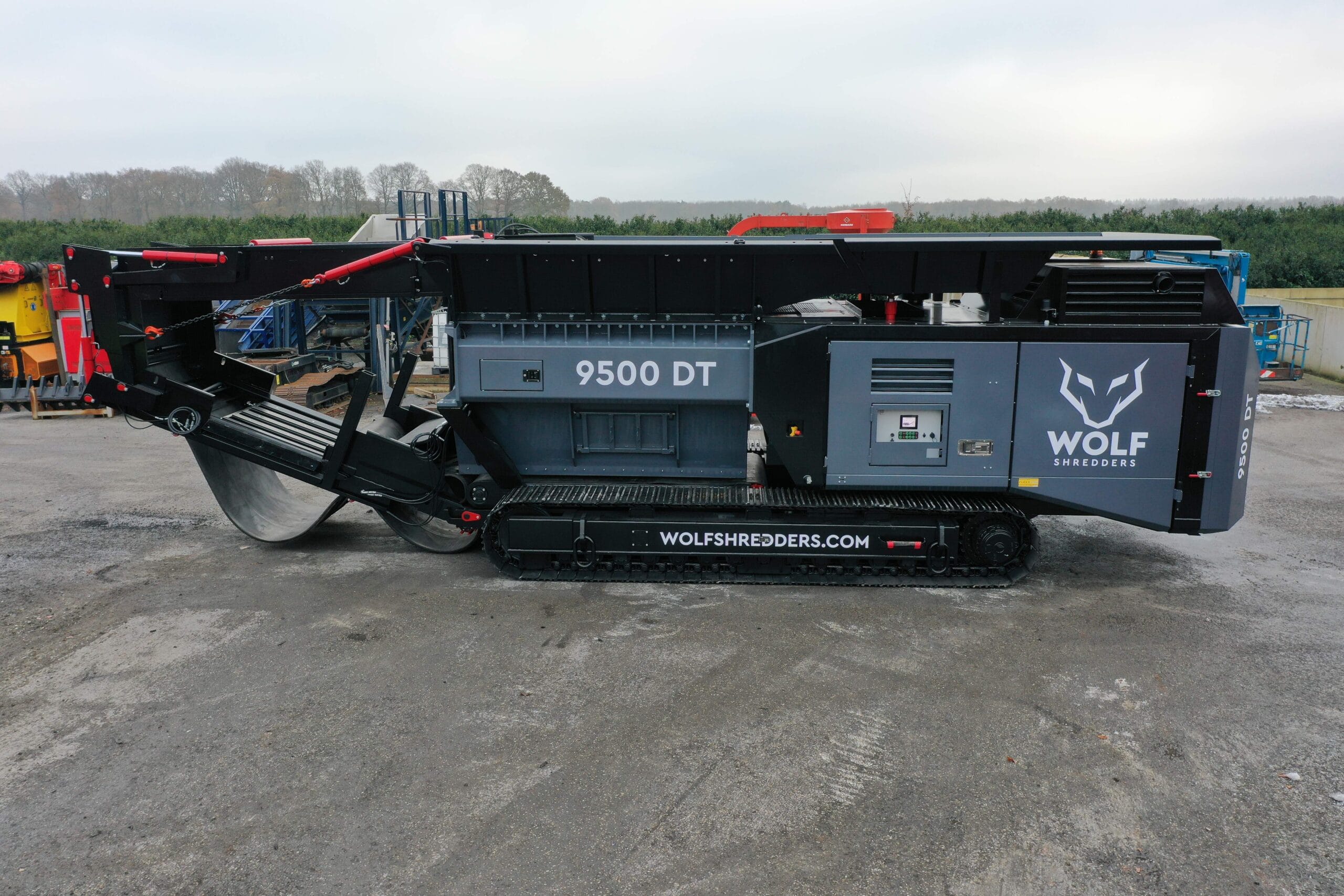

The WOLF 9500 DT mobile shredder is a heavy-duty twin-shaft primary shredder designed for high-volume recycling and waste processing applications. Mounted on tracks for mobility around the site, the 9500 DT combines high torque, a large tiltable hopper and powerful diesel operation to process even difficult and bulky materials.

From metals and aluminium to industrial waste, bulky waste, ELVs, car engines, tyres and construction waste, the WOLF 9500 DT gives recycling operators the flexibility to process multiple waste streams with one powerful machine.

Built for High-Volume Processing

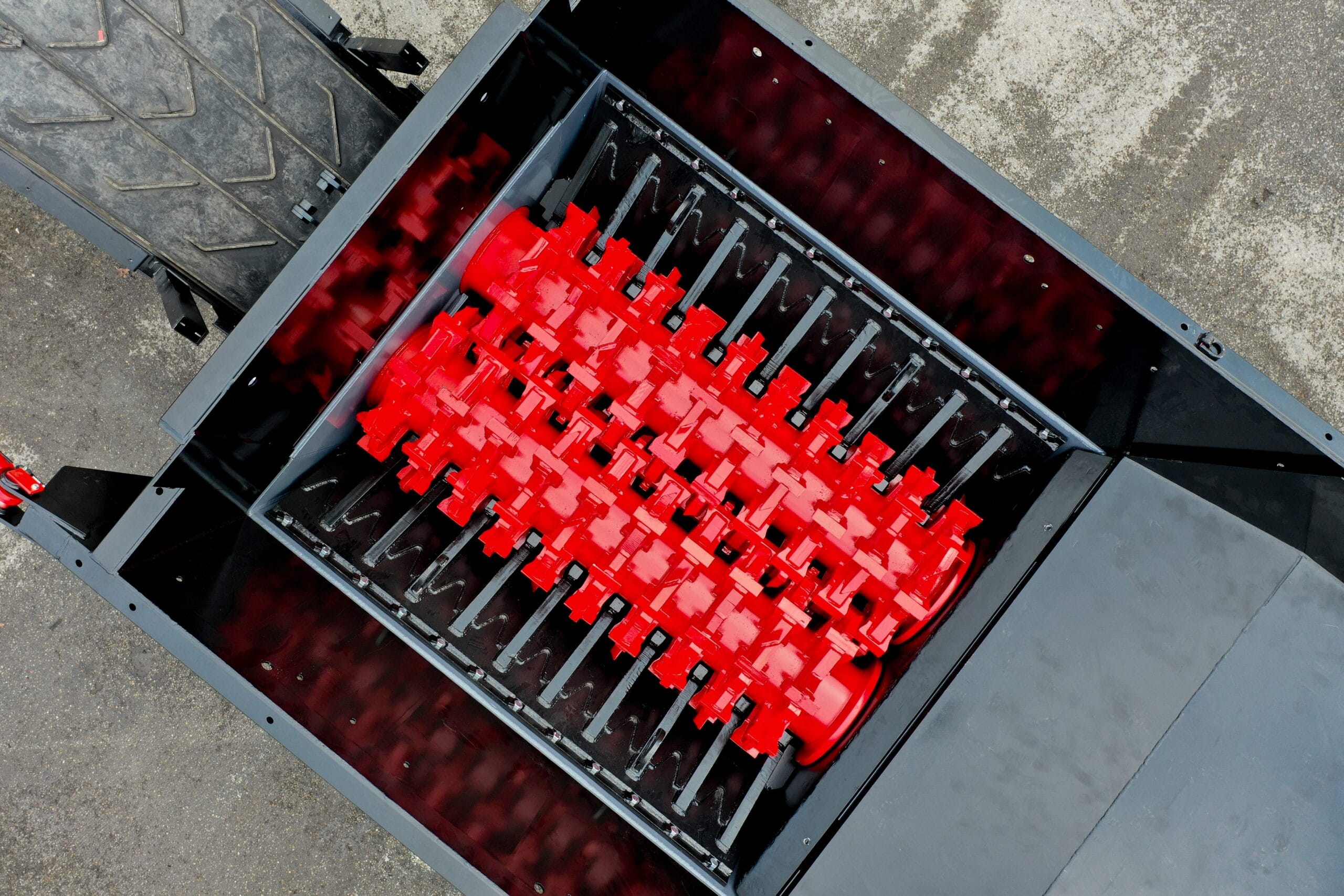

At the heart of the WOLF 9500 DT are two heavy-duty shafts with angled knives, specifically designed for difficult materials. When maximum hydraulic pressure is reached, the shafts automatically reverse to help maintain material flow and protect the system.

Key Features
• CAT C18 Stage V diesel engine – approx. 800 HP
• Heavy-duty twin-shaft shredding system
• Approx. 2,500 mm working shaft length
• Approx. 950 mm shaft diameter
• Automatic reverse system
• Large tiltable feeding hopper for continuous material flow
• Tracked undercarriage for mobility around the site
• Remote control for simple operation
• Adjustable ferrous metal separator
• Heavy-duty two-piece discharge conveyor
• Extra-strong shaft housing
• Large motor compartment for easy component access
• Foldable design for transportation by low-bed trailer

One Shredder. Multiple Waste Streams.

The WOLF 9500 DT has been developed for operators handling a diverse range of difficult materials, including:
• Aluminium and scrap metal
• End-of-life vehicles
• Car engines
• Household appliances
• Tyres
• Industrial and bulky waste
• Construction and demolition waste
• Wood and green waste
• Cable reels and pallets

Technical Data
Engine: CAT C18 Stage V diesel
Power: Approx. 800 HP
Shaft working length: Approx. 2,500 mm
Shaft diameter: Approx. 950 mm
Shaft speed: Approx. 27 rpm
Conveyor width: Approx. 1,400 mm
Maximum discharge height: Approx. 5.3 m
Transport dimensions: 11.36 × 3 × 3.22 m
Approximate weight: 48 tonnes

Mobile Shredding Where You Need It

The tracked design allows the WOLF 9500 DT to be repositioned around recycling and waste processing sites, while its foldable construction makes transportation between locations straightforward. Combined with remote operation and a hydraulically adjustable discharge conveyor, it provides a flexible solution for demanding processing environments.

Contact JMC Recycling to discuss the WOLF 9500 DT Mobile Shredder, pricing and availability.
