Macchina per la fusione in lingotti McIntyre Dolphin

Compact & High-Output Ingot Casting System

Alla JMC Recycling, progettiamo e produciamo macchine per la fusione di lingotti McIntyre di alta qualità, costruite per durare, essere efficienti e garantire prestazioni reali.

Developed in our own foundry and proven in demanding secondary smelting environments, our systems help metal recyclers, foundries and industrial processors convert scrap into high-value ingots with minimal waste ,giving greater control over one of the most profitable stages of production.

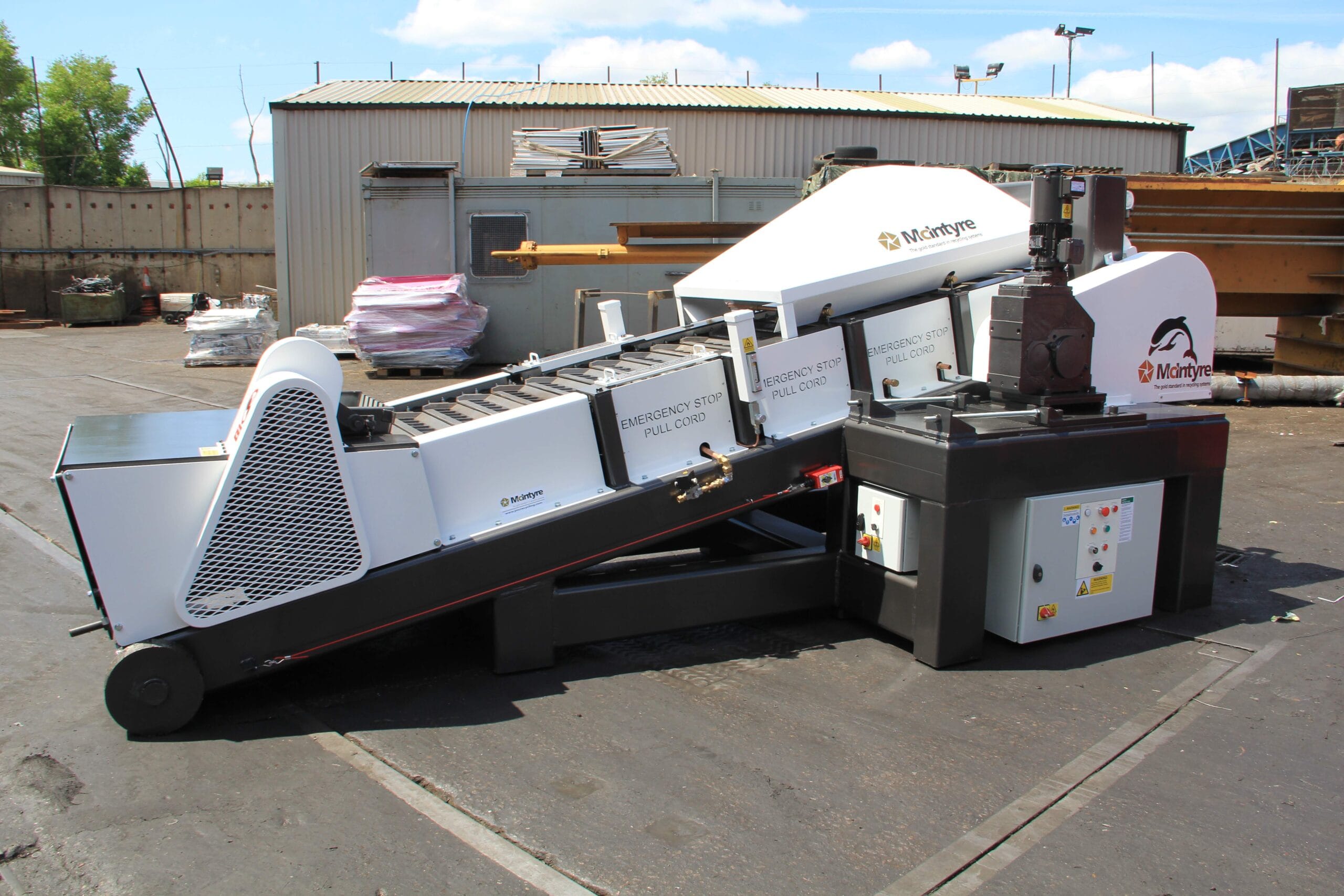

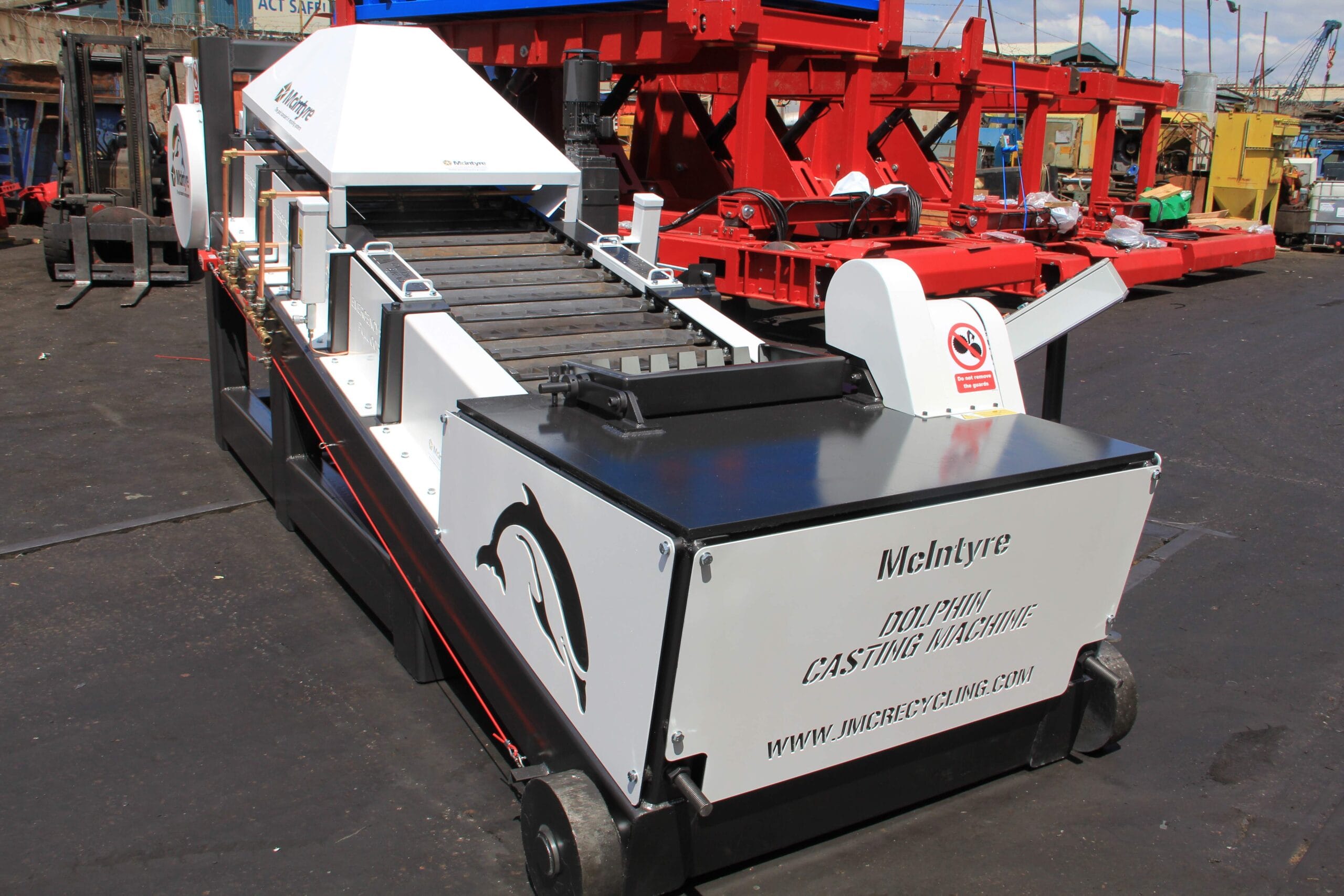

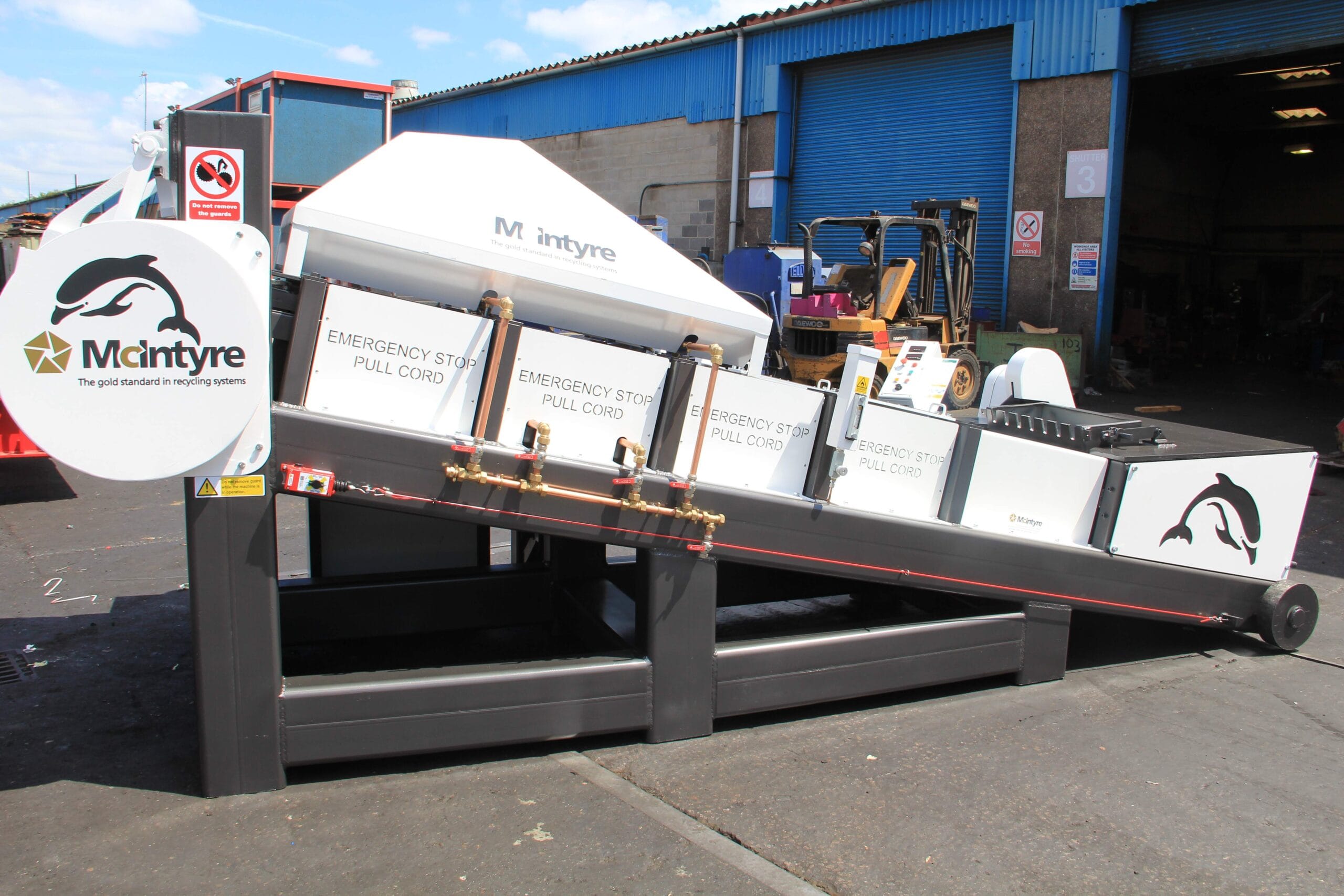

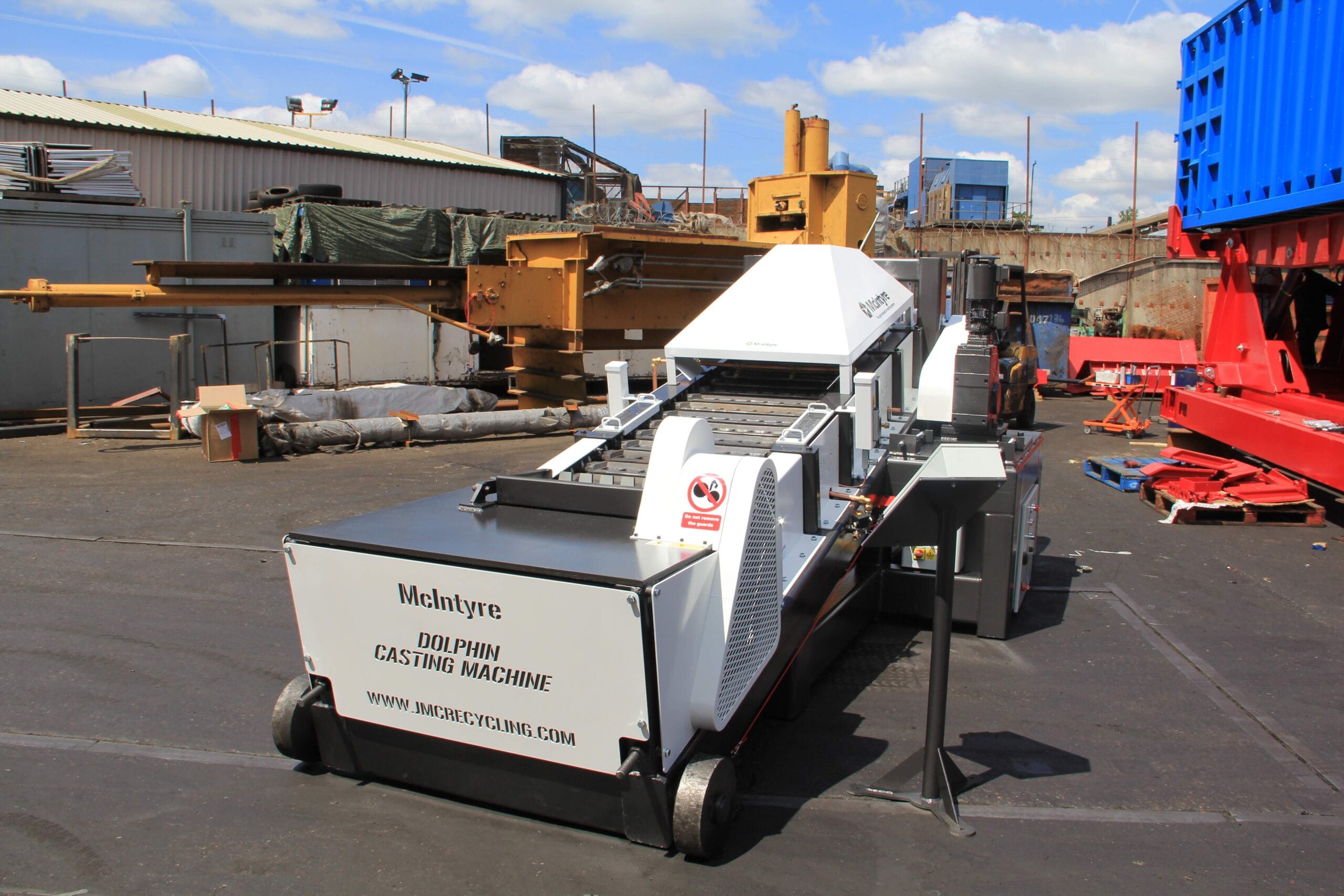

The McIntyre Dolphin is a compact yet higher-capacity casting system, offering increased output while maintaining a space-efficient footprint.

Efficient & Consistent Ingot Production

The Dolphin has been engineered to deliver trouble-free alloy production with consistent, high-quality results.

Molten metal is transferred from the furnace via a launder into a controlled pouring system, designed to minimise dross formation and ensure clean, uniform ingots. Adjustable speed control allows accurate regulation of metal flow, producing consistent ingot weight and dimensions.

Caratteristiche principali
• Compact casting system with increased production capacity
• Designed for consistent, high-quality ingot output
• Sistema di colata controllata per minimizzare le scorie
• Adjustable speed control for precise filling
• Sistema automatico di espulsione lingotti
• Heavy-duty steel construction for long-term reliability
• Custom mould design available with embossed branding

Capacità Materiali
Suitable for a range of non-ferrous materials, including:
Alluminio
Rame
Ottone
• Acciaio inossidabile
Ingot shapes and sizes can be tailored, including cones, cubes and bar ingots, depending on your requirements.

Specifiche Tecniche Tipiche
(Solo indicazione – soggetta a configurazione)
• Production rate: approx. 3–5 tonnes per hour
• Mould types: 5 kg and 25 kg options
• Number of moulds: approx. 56
• Materiale stampo: ghisa sferoidale
• Sistema di colata: ruota di colata
• Drive motor: approx. 1.1 kW (3 phase, adaptable)
• Cooling: air cooled with water-assisted cooling
• Sgocciolamento lingotti: martello automatico
• Costruzione: telaio in acciaio per impieghi gravosi completamente saldato
• Approx. weight: up to 6,500 kg

Costruito intorno alla tua operatività
Every Dolphin system can be tailored to suit your process, including:
• Ingot size and mould configuration
• Throughput requirements
• Integrazione con forni e sistemi di movimentazione
• Electrical setup for international supply

Proven McIntyre Engineering

With decades of recycling experience and thousands of machines installed worldwide, McIntyre systems are built to deliver reliability, efficiency and long-term value.

Soluzioni ingegnerizzate. Risultati reali.

Tell us your material, output and setup and we’ll configure the right ingot casting solution for your operation.

Contact us today to discuss the McIntyre Dolphin
